As a supplier of Harmonic Filter Cabinets, I've witnessed firsthand the critical role these systems play in maintaining the efficiency and reliability of electrical networks. However, like any complex equipment, Harmonic Filter Cabinets are prone to certain failures that can disrupt operations and lead to significant costs. In this blog post, I'll explore some of the common failures of Harmonic Filter Cabinets and discuss potential solutions to mitigate these issues.

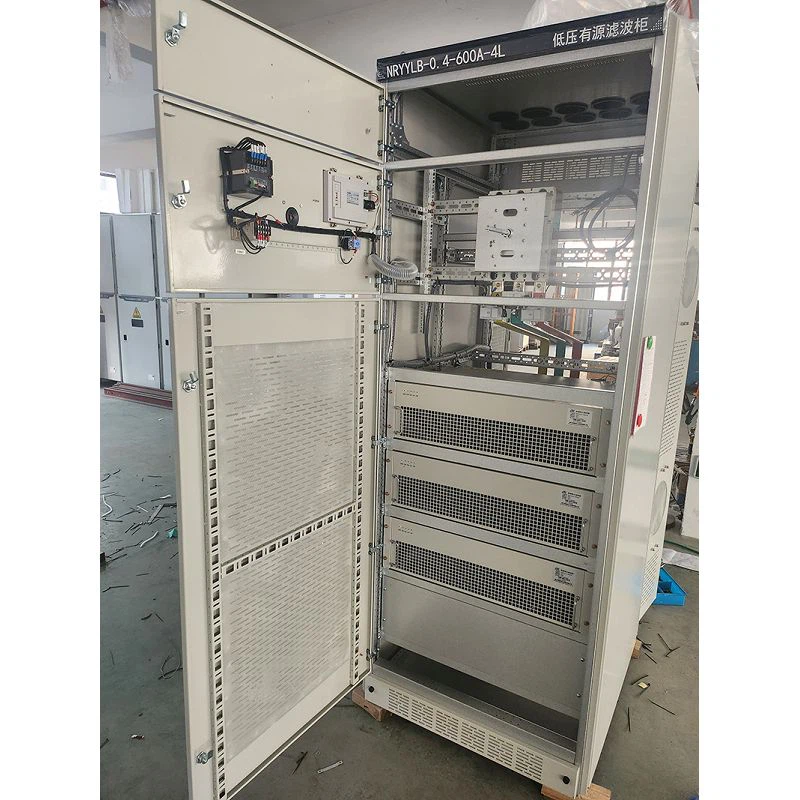

Overheating
One of the most prevalent problems in Harmonic Filter Cabinets is overheating. Overheating can occur due to several factors, including excessive harmonic currents, poor ventilation, and high ambient temperatures. When a Harmonic Filter Cabinet overheats, it can lead to a range of issues, such as reduced component lifespan, insulation degradation, and even fire hazards.
Excessive harmonic currents are a major contributor to overheating in Harmonic Filter Cabinets. Harmonics are non - sinusoidal components of an electrical waveform that can cause additional heat generation in the filter components. These currents can be generated by non - linear loads such as variable frequency drives, rectifiers, and electronic ballasts. When the filter is not properly sized to handle these harmonic currents, the components can overheat.
Poor ventilation is another common cause of overheating. If the cabinet is not designed with adequate ventilation openings or if the ventilation fans are not functioning properly, the heat generated by the filter components cannot be effectively dissipated. Additionally, high ambient temperatures can exacerbate the problem, especially in industrial environments where the temperature can be quite high.
To address overheating issues, it's essential to ensure that the Harmonic Filter Cabinet is properly sized for the application. This involves accurately calculating the harmonic currents and selecting a filter with the appropriate rating. Regular maintenance of the ventilation system, including cleaning the ventilation openings and checking the fan operation, is also crucial. In some cases, installing additional cooling equipment such as air conditioners or heat exchangers may be necessary.
Component Failure
Component failure is another significant concern in Harmonic Filter Cabinets. The filter components, such as capacitors, inductors, and resistors, are subject to wear and tear over time. Capacitors, in particular, are prone to failure due to factors such as voltage stress, temperature, and aging.
Capacitor failure can lead to a variety of problems, including reduced filtering effectiveness, increased harmonic distortion, and even system instability. When a capacitor fails, it may short - circuit or open - circuit, which can cause abnormal currents and voltages in the filter circuit. Inductors can also fail due to issues such as core saturation, winding insulation breakdown, and mechanical damage.
Regular inspection and testing of the filter components are essential to detect potential failures early. Capacitor banks should be tested for capacitance, equivalent series resistance (ESR), and insulation resistance on a regular basis. Inductors should be checked for signs of overheating, physical damage, and proper alignment. Replacing worn - out components in a timely manner can prevent more severe problems from occurring.
Incorrect Filter Design
An incorrect filter design can also lead to failures in Harmonic Filter Cabinets. If the filter is not designed to target the specific harmonic frequencies present in the electrical system, it may not be effective in reducing harmonic distortion. This can result in continued harmonic problems, such as equipment overheating, premature component failure, and interference with sensitive electronic equipment.
In addition, improper filter configuration can cause resonance issues. Resonance occurs when the natural frequency of the filter circuit matches the frequency of the harmonics in the electrical system. This can lead to a significant increase in the harmonic currents and voltages, which can damage the filter components and other electrical equipment.
To ensure a proper filter design, it's important to conduct a detailed harmonic analysis of the electrical system. This involves measuring the harmonic frequencies and amplitudes using specialized equipment. Based on the analysis results, the appropriate filter topology and component values can be selected. It's also crucial to consult with experienced engineers or use advanced design software to optimize the filter design.
Control System Malfunctions
The control system in a Harmonic Filter Cabinet is responsible for regulating the filter operation and ensuring that it responds appropriately to changes in the electrical system. Malfunctions in the control system can lead to ineffective filtering and other problems.
For example, if the control system fails to detect changes in the harmonic levels accurately, the filter may not adjust its operation accordingly. This can result in either under - filtering or over - filtering, both of which can have negative impacts on the electrical system. Additionally, problems with the control system's communication interfaces can prevent proper coordination between the filter and other electrical equipment.
Regular maintenance and testing of the control system are necessary to ensure its proper functioning. This includes checking the control algorithms, sensor accuracy, and communication links. Updating the control system software as needed can also improve its performance and reliability.
Electrical Connection Issues
Poor electrical connections in the Harmonic Filter Cabinet can cause a variety of problems. Loose or corroded connections can increase the resistance in the circuit, which leads to increased power losses and overheating. In extreme cases, loose connections can cause arcing, which can damage the components and pose a safety hazard.
Regular inspection of the electrical connections is essential. All connections should be tightened to the appropriate torque specifications, and any signs of corrosion should be cleaned or replaced. Using high - quality connectors and proper installation techniques can also help prevent connection issues.
Solutions and Recommendations
To minimize the failures in Harmonic Filter Cabinets, it's important to take a proactive approach. Here are some solutions and recommendations:
- Proper Sizing and Design: As mentioned earlier, accurately sizing the filter and designing it to match the specific harmonic characteristics of the electrical system is crucial.
- Regular Maintenance: Implement a comprehensive maintenance program that includes regular inspections, testing, and component replacement as needed.
- Training and Education: Provide training to the end - users and maintenance personnel on the proper operation and maintenance of the Harmonic Filter Cabinets.
- Use of High - Quality Components: Select high - quality components that are designed to withstand the operating conditions of the electrical system.
If you are facing issues with harmonic distortion in your electrical system or are interested in purchasing a reliable Harmonic Filter Cabinet, we are here to help. Our company offers a wide range of Active harmonic filter module, High Quality Shunt Active Power Filter, and Capacitor Harmonic Filter products. Contact us to discuss your specific requirements and let's work together to find the best solution for your electrical system.
