Overview

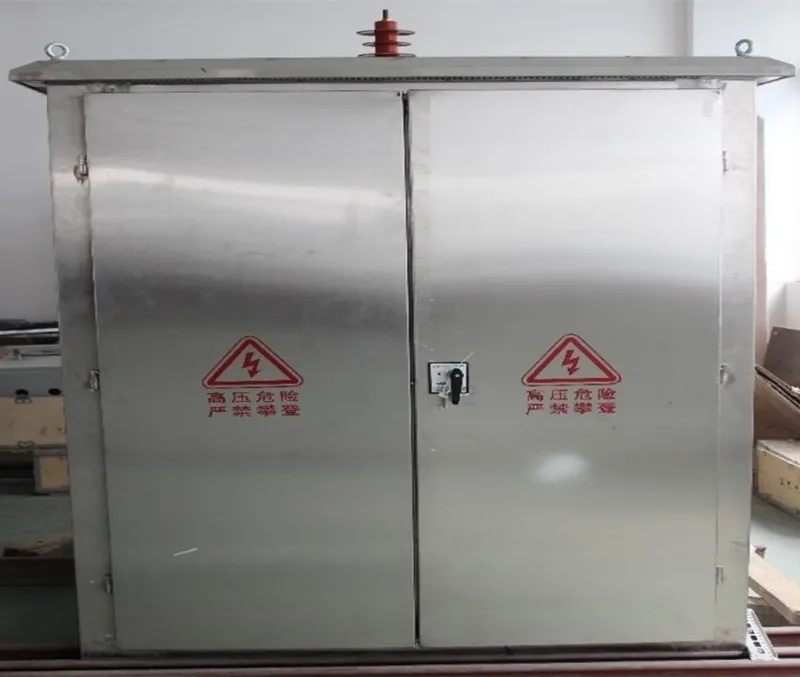

The ZRTBBZW column mounted outdoor line reactive power compensation complete set device is suitable for installation in 10 kV and 6 kV distribution lines, which can effectively increase power factor, reduce line material consumption, and improve voltage quality.

Reactive compensation of transmission line This device consists of a full temple voltage parallel electric candy (with built-in discharge resistance), a dedicated high-voltage vacuum contactor, a control voltage regulator, a high-voltage current transformer, a zinc oxide lightning arrester, a drop type fuse, a reactive power compensation automatic controller, a device box, and hardware wires. According to the needs of the circuit, the automatic switching of parallel capacitors (based on time, voltage, power factor or reactive power) is achieved through user pre-set settings, so that the power factor reaches the predetermined range value. It also has protection functions such as short circuit, overcurrent, overvoltage, undervoltage, phase loss, and preventing the capacitor from being charged and closing. The selected high-voltage vacuum contactor has undergone special aging treatment and has the characteristics of long service life and frequent operation, making it suitable for switching capacitors. The automatic controller has strong anti-interference ability and can ensure the reliable operation of the device. This Xilu controller can be equipped with a serial interface, and can achieve close range wireless remote control or remote GPRS base after connecting to relevant modules according to the needs of different users.

There are multiple groups of compensation options available in this game, depending on the female, which can be compensated by bending or multiple sets of automatic legs, or by automatically breaking the fixed curve. Users can choose corresponding grouping schemes based on the load characteristics of the line, making reactive power more accurate.

Environmental conditions for use

1. Environmental air temperature: -4or~+45r;

2. Altitude: not higher than 2000m;

3. Sunlight: amplitude (maximum) is 0.1W/cm2;

4. Wind speed: not exceeding 35m/Si

5. Local Constitution: Intensity does not exceed 8 degrees;

6. Installation site conditions: No severe mechanical vibration; No harmful gases and vapors; No conductive or explosive dust;

7. Pollution level: IV level; Note: Products with high prototype and special environmental requirements can be resolved through separate negotiations.

FAQ

Q: How can I get the sample?

A: If you need sample to test, we can make it as per your request.
If it is our regular product in stock, you just pay freight cost and sample is free.

Q: Can you do design for us?

A: OEM or ODM service is available. We can design product and package based on customer's requirement

Q: How about the color?

A: The regular colors of the products to choose are white, green, blue other colors can be also chosen.

Q: How about the material?

A: PP nonwoven, active carbon(optional), soft cotton, melt blown filter,valve(optional).

Q: What about lead time for mass production?

A: Honestly, it depends on the order quantity and the season you place order.
Generally speaking, the lead time is about 20-25days. So we suggest that you start inquiry as earlier as possible.

Q: Do you accept small order?

A: It is negotiable, please check the details with us.
